Design and Assembly Services
Take the Building and Testing of Fluid System Assemblies Off Your To-Do List
When resources are limited or potential skills gaps exist, take advantage of Swagelok North Carolina | East Tennessee's Assembly and Fabrication Shop for a complete turnkey solution. When you work with our team you can trust us to provide consistency and peace of mind, knowing your assembly is fabricated by certified technicians with a vast amount of experience and backed by our limited lifetime warranty allowing you to focus on your core business.
Whether you have a preliminary drawing or just the glimmer of an idea, it's not too early to consult with our fluid system experts.

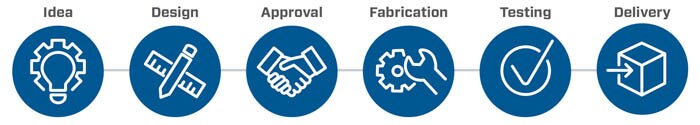

On the front end we are here to help with specification, layout, optimization and engineering support. Then our expert, Swagelok Certified Technicians will create the assembly and perform final testing and validation of your project. Sometimes, you might only need us to build a small piece of your project. Other times, it might make sense to outsource the entire job. We approach the process with flexibility and precision - from initial concept, through P&ID, to a plug and play, repeatable solution that will not fail.
Local Custom Fabrication Capabilities
Tube Bending
We can bend 1/4 up to 2 in. tubing in a variety of configurations and angles, including offset bends, using three styles of tube benders.
Regulator Gauge Assemblies
Our regulator assemblies offer the most frequently requested configurations for gas bottle or inline service utilizing K-Series pressure reducing regulators.

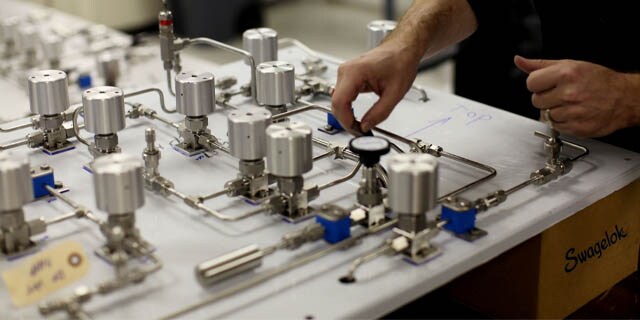

Panel Fabrication
Discuss your panel design requirements with us. We can customize point-of-use regulator panels, gas cylinder changeover manifolds, grab sample panels and more.

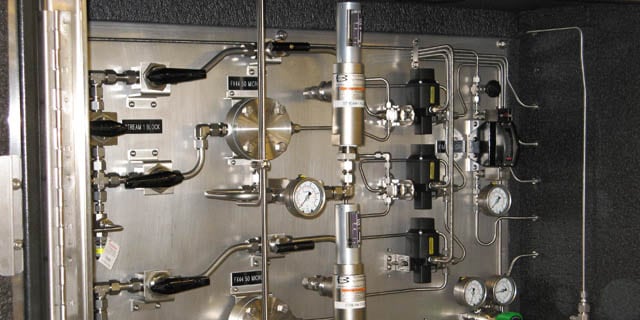

Enclosure Fabrication
When you need systems enclosures, we can assist with even the most complex designs including non- Swagelok components.

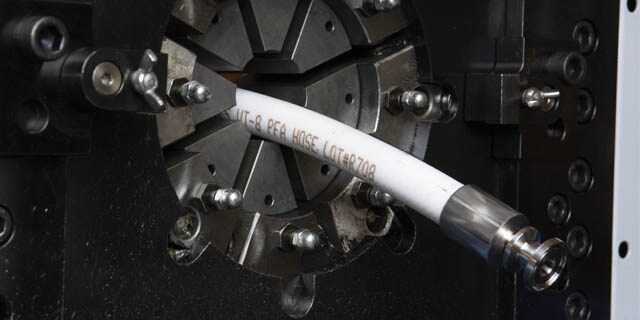

Hose Fabrication
Choose from a vast selection of hose products, then let us cut them to your specified length and fabricate custom end connections.

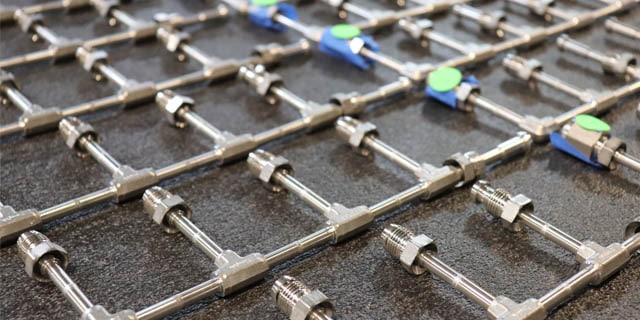

Orbital Welding
Achieve quality welds on stainless steel tubing or other alloys upon request. Our welders are certified in ASME Section IX standards.
Why consider our Assembly and Fabrication Shop?
We have over 15 years' experience in assembly and fabrication, technology, state-of-the-art equipment, and certified personnel to get the job done right - the first time:
- Mechanical and Electrical Engineers on staff to assist in layout and system designs
- Swagelok Certified Technicians
- Final testing that ensures all assemblies are leak-free
- Swagelok Quality System (ISO 9001 compatible)

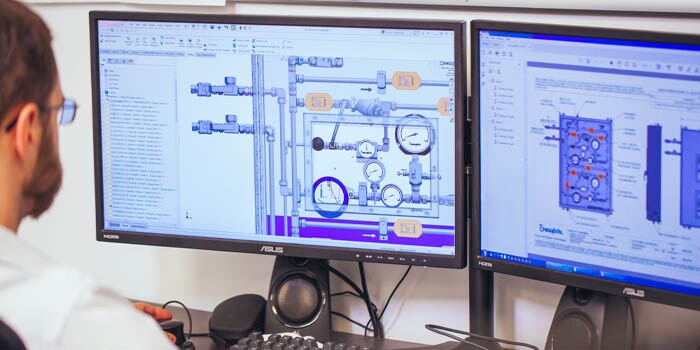

- 3D CAD modeling via SolidWorks

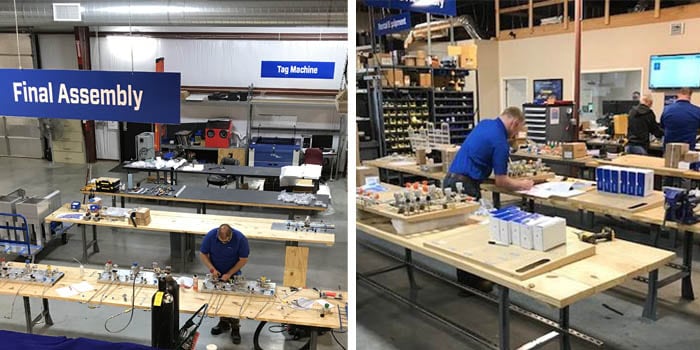

- 7,000 square foot fabrication shop
We're local and global. From project start to completion we ensure your unique requirements are seamlessly met through our partnership with Swagelok Global Technology Centers allowing us to tap into the knowledge and expertise from Swagelok's corporate engineering, fabrication and assembly teams.
Save Time with Standard and Configurable Assemblies

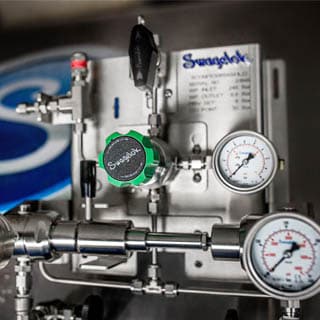

Gas Distribution Systems
We evaluate existing gas distribution systems and build standardized, configurable gas delivery systems to help protect system operators, increase process uptime, and improve process accuracy and repeatability. Learn more.

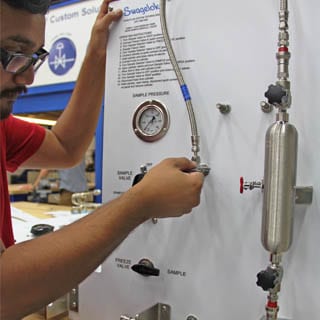

Grab Sampling Systems
Customizing Swagelok grab sampling systems allows for safe, efficient sample capture while meeting your specific plant application needs. The panels are available in a variety of configurations and advanced features. Learn more.

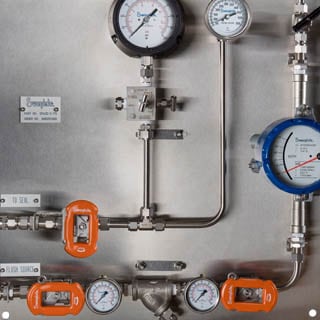

Mechanical Seal Support Systems
Our seal support systems are guided by API 682 and offered as kits and assemblies. These systems reliably supply either gas or liquid to the mechanical seal to regulate the environment in which the seal operates, increasing longevity. Learn more.
